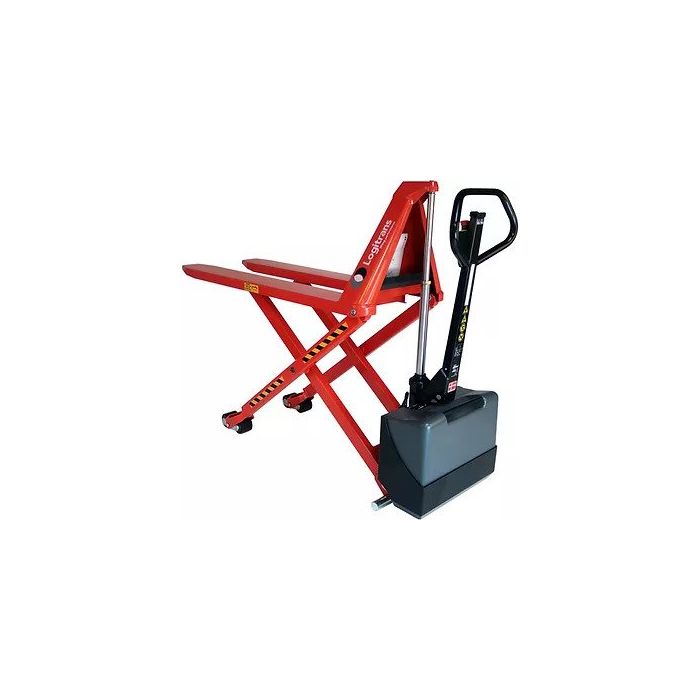

Logitrans Highlifter EHL 1004
Availability:
In Stock
£0.00
A highlifter guarantees the appropriate ergonomic working height for the transportation, lifting, and handling of pallet elements.
The highlifter's sleek design prioritises safety and user-friendliness. Its rounded edges minimise the likelihood of damaging the surroundings during movement, while the handle's shape ensures a comfortable and relaxed grip.
Ensure proper ergonomic working height during pallet transportation, lifting, and handling with a highlifter.
The highlifter boasts an elegant design prioritizing safety and user-friendliness. Its smooth corners minimise the risk of damaging the surroundings during movement, while the handle's shape provides a comfortable and ergonomic grip.
Our commitment to high quality is reflected in an extensive testing program conducted in collaboration with Health and Safety experts.
Adjustable working height is available.
Optional extras are available.
Exceptional manoeuvrability.
Equipped with electric lift.
Forks possess quick and precise stopping capabilities.
Capacity ranges from 1,500 kg at a lifting height of 470 mm to 1,000 kg from 470 mm to 800 mm.
Ergonomically designed handle.
Individual customisation options.
Rounded corners.
Lightweight construction.
Control buttons are conveniently located at the centre.
Emergency stop button centrally positioned.
Low overall height.
Stabilising feet located at the steering wheels.
Long lifespan.
Minimal maintenance costs.
Reliable cylinder structure.
Sturdy construction.
Utilisation of high-quality materials.
Logitrans equipment is supplied with variable options, please contact our sales team for a detailed quote:
sales@nationwidehandling.co.uk
01462 659180
-
Capacity in kg 1500 1000 Lifting height 500 600 800 Fork length 700 900 1200 1520 2000 Overall height 540 Fork span 480, 540, 680 540, 680 Length without forks 451 Overall length 1151 1351 1651 1971 2451 Overall height with handle 1195 Lowered height 85 90 Fork width 163 Turning angle of the wheels 180 Gangway 1890 (pallet: 1200 x 800 Lifting speed with/without load 0,05/0,08 m/s Lifting speed normal/quick - Lowering speed With/without load: 0,07/0,05 m/s Pump motor 1,2 kW 12 V Weight with 1200 mm forks 123 kg (no battery)
